Silvertone 6014 Ch= 101.505 old

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56574
    • Brand: Silvertone

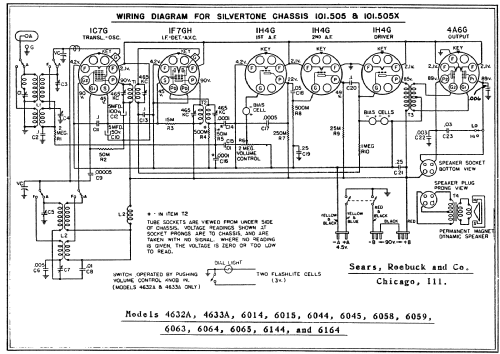

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage and/or dry batteries / 4,5 (storage b.) & batt. 2 x 45 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Silvertone 6014 Ch= 101.505 [old] - Sears, Roebuck & Co.; Chicago
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • The "old version" Silvertone 6014 is a model taken from Rider's Page 10-7 with a date April 15 from 1938. Then it has probably been produced already in 1937 - together with the following models on that plan: 4632A, 4633A, 6014, 6015, 6044, 6045, 6064, 6144, 6164, Chassis 101.505 or 101.505X. They use a storage battery for the tube heaters and two 45 volt batteries. The "new" model 6014 has chassis 132.40500 and is from SAMS Date 8-56!. This is a small AC-DC operated AM superhet.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
