Silvertone Order= 57K 6046 Ch= 101.512 battery

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1938/1939
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56596
    • Brand: Silvertone

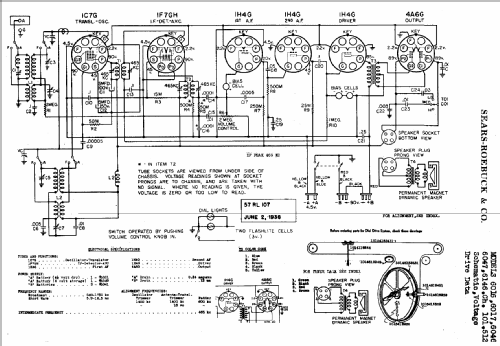

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / 90 & 4.5 & 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 0.8 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone Order= 57K 6046 Ch= 101.512 [battery] - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 21 x 13.125 x 11.5 inch / 533 x 333 x 292 mm
  • Notes
  • The Silvertone model 6046 resp. 6047 with chassis 101.512 are battery operated pre war radios without integrated record player. Otherwise they are the same. The model 6046 is the version for a dry battery for the heaters ("A") and model 4047 is for a 4-volt storage battery for the heaters. Both types use B and C dry batteries. Bias Cells 3 Volt. Otherwise they are the same.

    But the same model designation 6046 with chassis 528.34900 is an AC operated radio with 3 speed automatic record changer from the 1950s.
  • Price in first year of sale
  • 30.45 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
