• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 277237

• • Brand: Silvertone

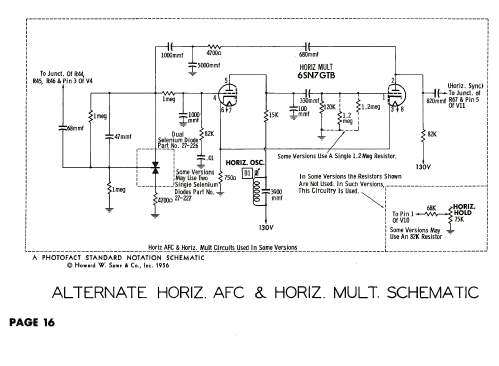

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 5BK7A 5U8 2AF4A 5B8 5B8 6AU8 3BN6 12L6GT 12L6GT 3AL5 6SN7GTB 12DQ6 12AX4GT 1X2B 17HP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6104 Ch= 549.20033 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes

• The SILVERTONE model  6104 is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF- UHF tuner 1D2844, chassis 549.20033 and picture tube 17HP4.Selenium rectifier.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 333 Folder 12 dated 10-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
