• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56670

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J8G 6U7G 6B6G 25B6G 6U5 25Z6G

• Number of Transistors

• Semiconductors
• BK42B

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.4 inch = 13.7 cm

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

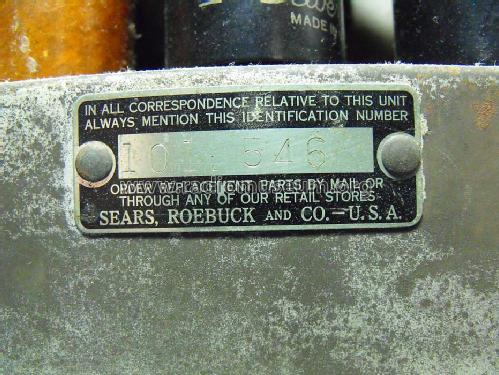

• Model: Silvertone 6120 Ch= 101.546 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Push Buttons.

• Notes

• Sears model 6120 covers the broadcast band to 1730 kHz and a single shortwave band from 6 to 18 MHz.  The B+ power supply uses voltage doubling and is therefore AC only. The highest B+ voltage on the 6U5 plate is 215 VDC as shown on the schematic.  The speaker is a field coil type that doubles as a DC choke.  The push-buttons move the variable capacitor by mechanical action and can each be fixed for any point in the travel of the variable capacitor, either broadcast or shortwave.  Note that with voltage doubling, the chassis is a shock hazard relative to any grounded object in either position of the power plug.

• External source of data
• Ernst Erb

• Source of data
• Table Top Radios Vol. 1 Stein 98

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (1)
• Riders 11-10, 12, 15, 16

• Literature/Schematics (2)
• -- Original-techn. papers. ("Sears Silvertone 6120 table model, Chassis 101.546", RPost, The Spectrum Monitor, March,2026,p77-81)
