Silvertone Order= 57D 6354 Ch= 101.577

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56816
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 0.17 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone Order= 57D 6354 Ch= 101.577 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 17 x 10.375 x 10.125 inch / 432 x 264 x 257 mm
  • Price in first year of sale
  • 20.90 $
  • External source of data
  • Ernst Erb

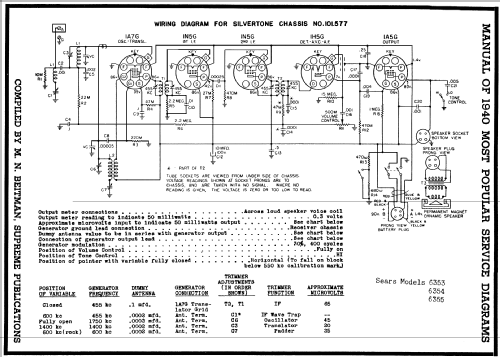

  • Circuit diagram reference
  • Rider's Perpetual, Volume 11 = ca. 1940 and before
