Silvertone 6424 Ch= 101.570 (-1A) (-1B)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56860

• • Brand: Silvertone

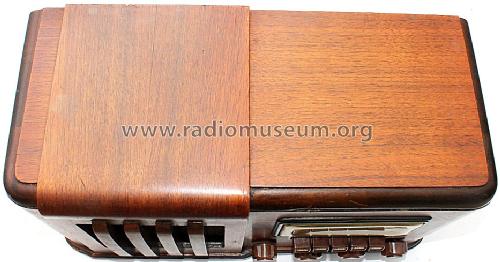

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K8G 6U7G 6F5G 6J5G 6U5 25L6G 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 100-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 6424 Ch= 101.570 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16.5 x 9.875 x 7.25 inch / 419 x 251 x 184 mm

• Notes

• 5 Push Button Tuning for Broadcast 550 to 1600 kc. The SW is a combination of tropical band and some SW.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before
