Silvertone Order= 57FM 701 Ch= 101.574-1A
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56928
-
- Brand: Silvertone

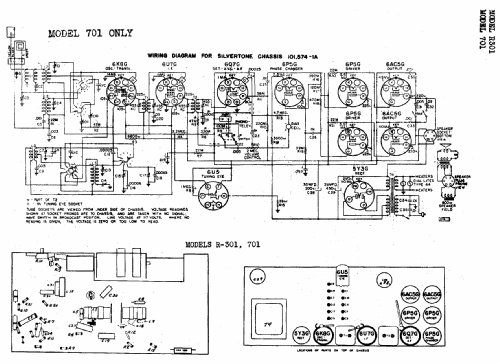

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57FM 701 Ch= 101.574-1A - Sears, Roebuck & Co.; Chicago
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 28.75 x 34.75 x 12.875 inch / 730 x 883 x 327 mm
- Notes
-
Built in loop antenna.
- Price in first year of sale
- 47.95 $
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Literature/Schematics (1)
- Riders 13-1, 2
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 199)
- Literature/Schematics (3)

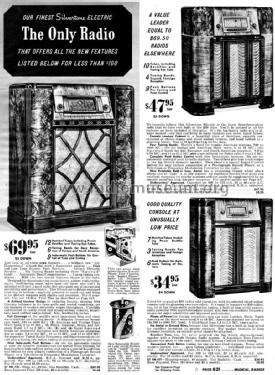

- Sears, Roebuck Catalogs (Silvertone) (#181, Fall & Winter 1940/41, page 621.)
