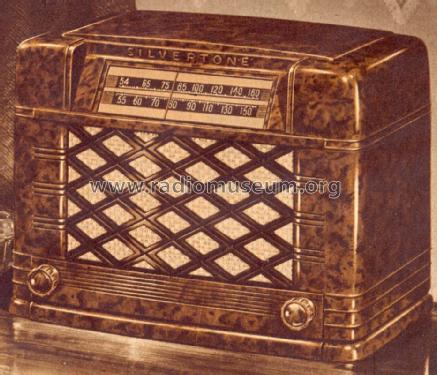

Silvertone Order= 57K 7016 Ch= 100.364
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56932
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 100-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.7 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone Order= 57K 7016 Ch= 100.364 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12.875 x 9.75 x 7.25 inch / 327 x 248 x 184 mm
- Notes
-
Speaker: PM dyn or electro dyn. Built in loop antenna.
- Price in first year of sale
- 14.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942 (page 223)
- Literature/Schematics (1)
- Machine Age to Jet Age III (Riders 13-57, 58)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#183, Fall & Winter 1941/42, page 840.)
