• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56954
    • Brand: Silvertone

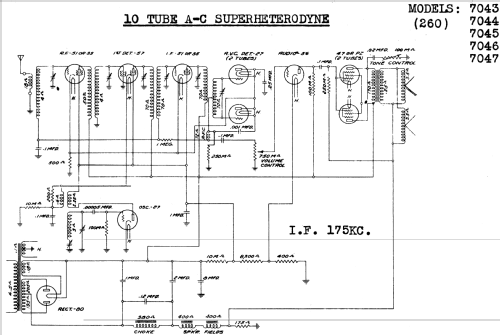

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / Either transformer: 25 cycles, 110V or 60 cycles, 110V or 60 cycles, 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • from Radiomuseum.org
  • Model: Silvertone 7044 - Sears, Roebuck & Co.; Chicago
  • Notes
  • The Sears Silvertone 7044 is an AC operated 10 tube BC band receiver. Has Qty(2) Electro Magnetic Dynamic(moving-coil with field excitation coil) speakers with field coils wired in series.  Output tubes are wired in parallel.

    Chassis and schematic used in this model also used in models 7043, 7045, 7046 and 7047.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Wholesale Radio Service Co., New York, NY (Sears Manufacturer Source Number Code 118).

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 5 = ca. 1934 and before
