Silvertone 8070A Ch=101.817-2A
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57203
-
- Brand: Silvertone
Beitman

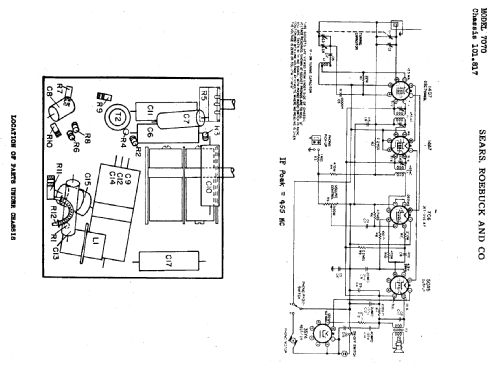

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Silvertone 8070A Ch=101.817-2A - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Notes
- Phono Motor mit Kohlebüsten =/~
- External source of data
- Ernst Erb
- Source of data
- Machine Age to Jet Age III
- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 09, 1949 (Riders 17-2, 3 ; 20-12)
