• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57219

• • Brand: Silvertone

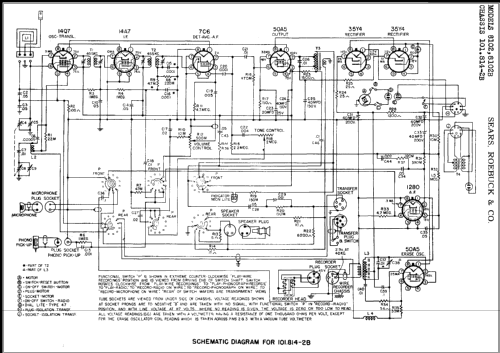

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 14Q7 14A7 7C6 50A5 50A5 35Y4 35Y4 1280

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Wire Recorder (or -Player)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Silvertone 8102B Ch=101.814-2B - Sears, Roebuck & Co.; Chicago

• Notes
• Röhre 1280 NF Pentode VF 12,6 IF 0,15A laut Brans Vademecum 1950

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 09, 1949
