Allstate 6268 Ch= 528.62680

Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410501) Car Radio

Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410503) Car Radio

Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410504) Car Radio

Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410505) Car Radio

Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410507) Car Radio

Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410508) Car Radio

Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410509) Car Radio

Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410511) Car Radio
Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410498) Car Radio
Use red slider bar for more.
Allstate 6268 Ch= 528.62680; Sears, Roebuck & Co. (ID = 2410498) Car Radio
Sears, Roebuck & Co.: Allstate 6268 Ch= 528.62680 [Car Radio] ID = 2410498 1268x1205
Select picture or schematic to display from thumbnails on the right and click for download.
For model Allstate 6268 Ch= 528.62680, Sears, Roebuck & Co.; Chicago (IL):

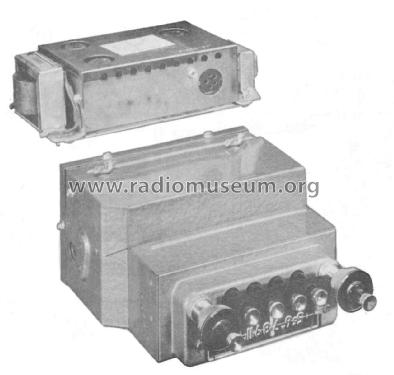

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1957 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: 12BL6 12AD6 12AF6 12AE6
Semiconductors (the count is only for transistors) 3: 2N176 2N176 2N176
Main principle Superhet with RF-stage; ZF/IF 262 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Allstate 6268 Ch= 528.62680 - Sears, Roebuck & Co.; Chicago
Material Metal case
Shape Chassis only or for «building in»
Notes

Allstate model 6268 is a battery operated universal type AM automobile receiver with transistorized output.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 365 Folder 3 dated 7-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
