Allstate 6268 Ch= 528.62681

Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410512) Car Radio

Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410513) Car Radio

Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410514) Car Radio

Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410515) Car Radio

Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410516) Car Radio

Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410517) Car Radio

Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410518) Car Radio

Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410519) Car Radio
Use red slider bar for more.
Allstate 6268 Ch= 528.62681; Sears, Roebuck & Co. (ID = 2410512) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1957 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: 12BL6 12AD6 12AF6 12AE6
Semiconductors (the count is only for transistors) 3: 2N176 2N176 2N176
Main principle Superhet with RF-stage; ZF/IF 262 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Allstate 6268 Ch= 528.62681 - Sears, Roebuck & Co.; Chicago
Material Metal case
Shape Chassis only or for «building in»
Notes

Allstate model 6268 is a battery operated universal type AM automobile receiver with transistorized output.

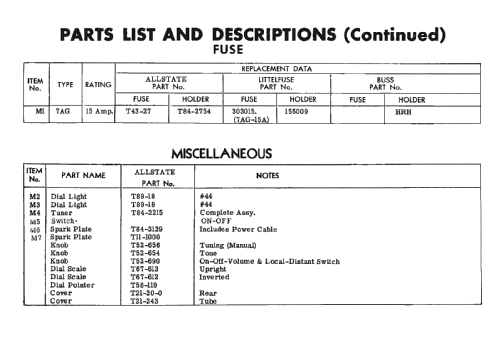

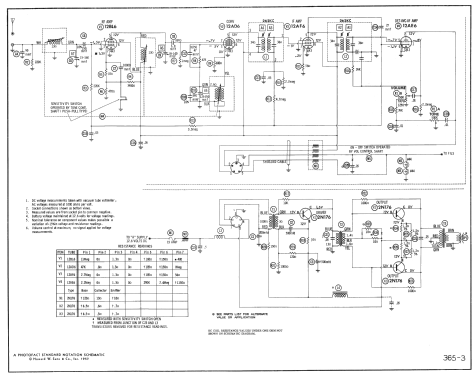

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 365 Folder 3 dated 7-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
