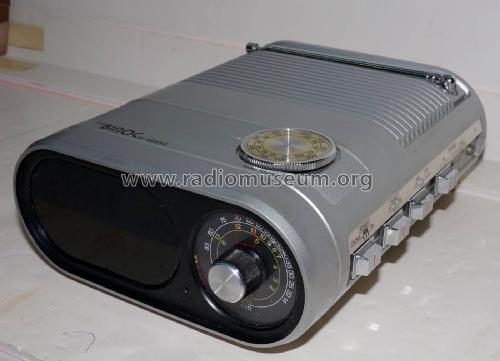

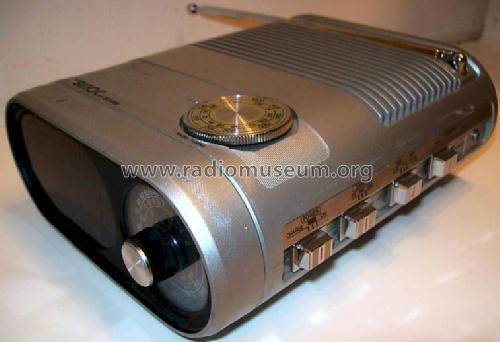

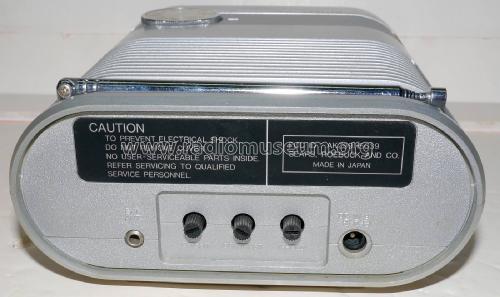

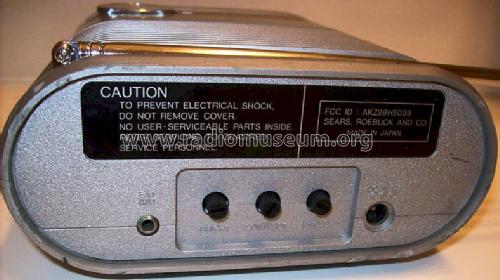

The Binoc Ch= 564. 5039 0050; Sears, Roebuck & Co. (ID = 673360) TV Radio
Sears, Roebuck & Co.: The Binoc Ch= 564. 5039 0050 [TV Radio] ID = 673360 757x518
Select picture or schematic to display from thumbnails on the right and click for download.
For model The Binoc Ch= 564. 5039 0050, Sears, Roebuck & Co.; Chicago (IL):
Ebay auction 160367389417

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1980/1981 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details

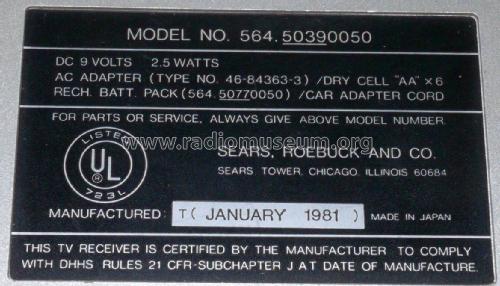

Power type and voltage Line / Batteries (any type) / Netzgerät; 120; 9; 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.75 inch = 4.4 cm
Power out
from Radiomuseum.org Model: The Binoc Ch= 564. 5039 0050 - Sears, Roebuck & Co.; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 5 x 2.5 x 7.25 inch / 127 x 64 x 184 mm
Notes Sears 564. 5039 0050, The Binoc; 2 " b/w TV with US standard VHF- and UHF tuner, MW/FM radio, plays also with accu pack or car adapter cord, made in Japan, most similar with SANYO TPM 2570.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
