Erla 3 tube Reflex kit Supereflex Order= 57A 2676 and 2298

Erla 3 tube Reflex kit Supereflex Order= 57A 2676 and 2298; Sears, Roebuck & Co. (ID = 1256778) Kit
Use red slider bar for more.
Erla 3 tube Reflex kit Supereflex Order= 57A 2676 and 2298; Sears, Roebuck & Co. (ID = 1256778) Kit
Sears, Roebuck & Co.: Erla 3 tube Reflex kit Supereflex Order= 57A 2676 and 2298 [Kit] ID = 1256778 933x1097
Select picture or schematic to display from thumbnails on the right and click for download.
For model Erla 3 tube Reflex kit Supereflex Order= 57A 2676 and 2298, Sears, Roebuck & Co.; Chicago (IL):

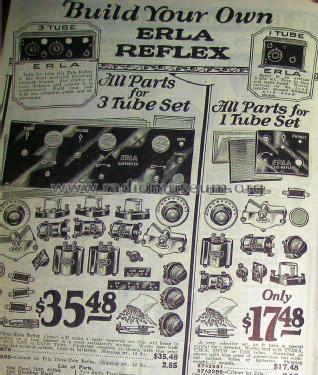

Sears catalog 1925, page 18.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1925 perfect model Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 3: UV201A UV201A UV201A
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); Reflex
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Erla 3 tube Reflex kit Supereflex Order= 57A 2676 and 2298 - Sears, Roebuck & Co.; Chicago
Material Special material, described in the notes.
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes The Sears Catalog (57A....) 1925 shows the Erla 3 tube Reflex kit as 57A2676 for $ 35.48 - but without cabinet, tubes or batteries. The page schows all electrical parts for the "Three Tube Reflex" Erla Supereflex, which can use either 3 UV201A, C299 or UV199 tubes. Cabinet costs $ 2.85.
Price in first year of sale 35.48 $ +
Literature/Schematics (1) Sears, Roebuck Catalogs (Silvertone) (Radio Catalog 1925, page 18)

Model page created by Ernst Erb. See "Data change" for further contributors.
