For model Meteor 4104-B Ch= 528.45001, Sears, Roebuck & Co.; Chicago (IL):

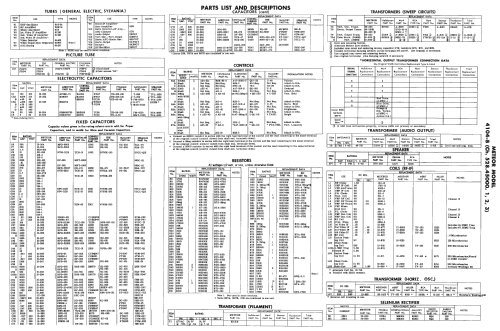

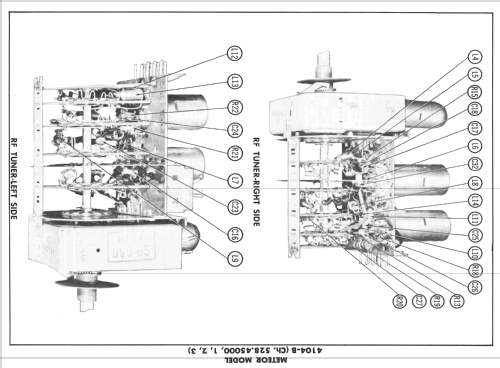

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1956 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 6AF4A 6BK7A 6U8 6CB6 6CB6 6AM8 6AW8 6AU6 6U8 6T8 6K6GT 12BH7A 6SN7GT 6AV5GT 6AX4GT 1B3GT 17HP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Meteor 4104-B Ch= 528.45001 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Meteor model 4104-B is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 528.45001, VHF-UHF tuner 95-63 and picture tube 17HP4.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 328 Folder 7 dated 9-56)

Model page created by Dirk Taekels. See "Data change" for further contributors.
