For model Navy Type Loose Coupler, Sears, Roebuck & Co.; Chicago (IL):

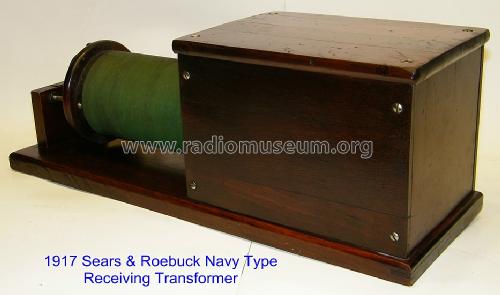

1917 Sears & Roebuck Navy Type Receiving Transformer

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1918 ?? Category: Radio module pre 1926 (not a part, not a key)
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Navy Type Loose Coupler - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 18.25 x 6.5 x 7.25 inch / 464 x 165 x 184 mm

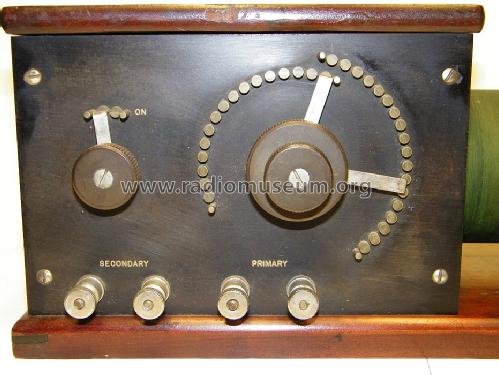

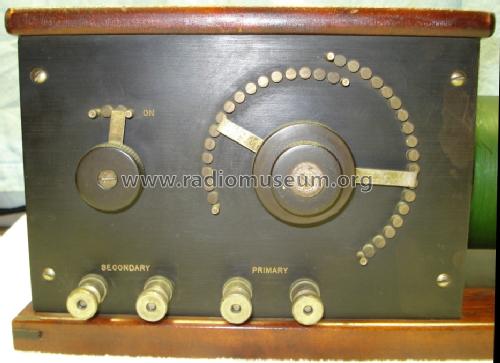

Notes Primary coil with one band switch and a combined fine and coarse tap control knob, slide coil with 12 taps.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
Here you find 5339 models, 3107 with images and 3907 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Sears, Roebuck & Co.: Navy Type Loose Coupler
Threads: 1 | Posts: 1
Hits: 1249     Replies: 0
unknown: Navy Type Loose Coupler
Alan Larsen
05.Feb.13
  1

This is a Sears & Roebuck Navy Type Receiving Transformer. We have a model page here:

Here is a picture of my coupler.


Sears, Roebuck & Co.: Navy Type Loose Coupler
