PC-9104GY Ch= 456.51340; Sears, Roebuck & Co. (ID = 885718) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 17CTP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: PC-9104GY Ch= 456.51340 - Sears, Roebuck & Co.; Chicago
Notes b/w TV with US standard VHF Tuner Channels 2 thru 13, 14 thru 83 UHF. Tubes UHF: 17. Some Models with Picture Tube 21DHP4.

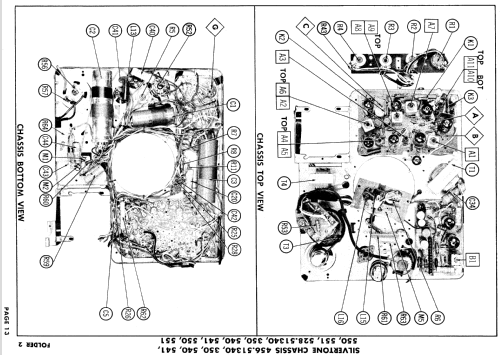

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 440, Folder 2)

Model page created by Egon Penker. See "Data change" for further contributors.
