• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222312

• • Brand: Silvertone

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Radio with other functions

• Power type and voltage

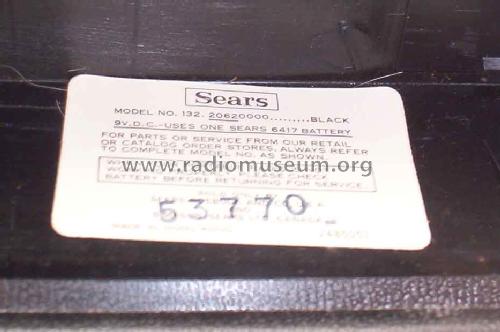

• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

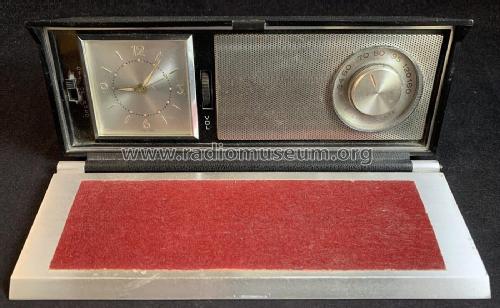

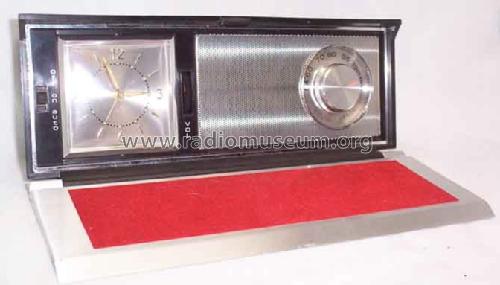

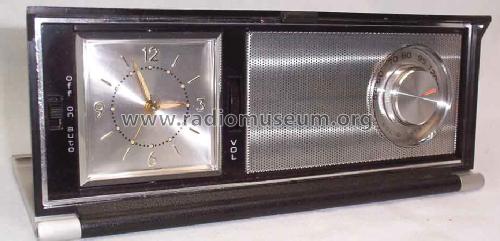

• Model: Reveille 132.2062 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 7.75 x 2.5 x 1.75 inch / 197 x 64 x 44 mm

• Notes
• The clock is mechanical. Only the radio is powered.

• Net weight (2.2 lb = 1 kg)
• 1.3 lb (1 lb 4.8 oz) / 0.590 kg

• Mentioned in
• - - Manufacturers Literature (Owner's Manual)

• Literature/Schematics (1)
• Sears, Roebuck Catalogs (Silvertone)

• Author
• Model page created by William Goodwin. See "Data change" for further contributors.
