Silverone 22191 Order= 57H 22191
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1968/1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254254
-
- Brand: Silvertone
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silverone 22191 Order= 57H 22191 - Sears, Roebuck & Co.; Chicago
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.75 x 4.75 x 1.625 inch / 70 x 121 x 41 mm
- Notes
-
The Sears Silvertone 22191 is a battery operated portable AM radio. Has built-in AM antenna and slide-rule dial. This model was sold with battery, earphone and carrying strap.
Made in Hong Kong.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Cabinet 22201 Blue 22191 White 22181 Brown 22171 Black
- Price in first year of sale
- 11.50 $
- Literature/Schematics (2)

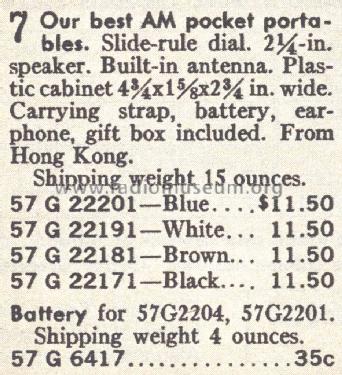

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1969, page 917.)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1968, page 1247.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
