Silvertone 1045 Ch= 528.194

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1952 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 358107
    • Brand: Silvertone

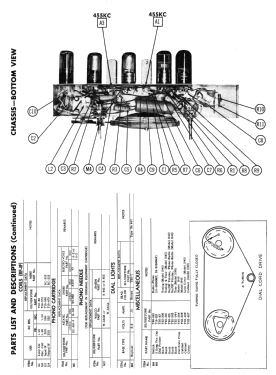

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • AC/DC-set / AC/DC 117V =110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Silvertone 1045 Ch= 528.194 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • The Silvertone "Table Radio-Phonograph" models 1040 and 1045 with chassis 528.194 are AC-DC operated AM superheterodynes with a 3 speed automatic record changer for 7", 10" and 12" records. Smooth silent "Floating Action" changing mechanism, ceramic phonograph cartridge with "long-life all-purpose" needle. For service information on record changer unit - see similar V-M model 950 (Photofact set 107, folder 13 or record changer manual CM-3). Broadcast reception 540 to 1600 kHz. Built in "Radionet" antenna. Variable tone control. The differences between model 1040 and 1045 are the cabinet: 1040 (57G01040) has a brown plastic cabinet, but 1045(L) (57G01045L) and 2046(L) (57G02046L) are in wood with a slightly different scale than the plastic version. 1045L and 1045 are in Mahogany and 2046L and 2046 are the same in "Limed Oak". The L might indicate a later version.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
