Silvertone 1450 knobs in "v" arr.
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 222755
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110 - 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 1450 [knobs in "v" arr.] - Sears, Roebuck & Co.; Chicago
- Notes
-
This Sears Silvertone 1450 is the superhet with the old chassis, having the knobs in a "v" (triangle, top down), 3 tubes 35. The design of this old chassis was changed from a cathode mixer to a grid mixer.

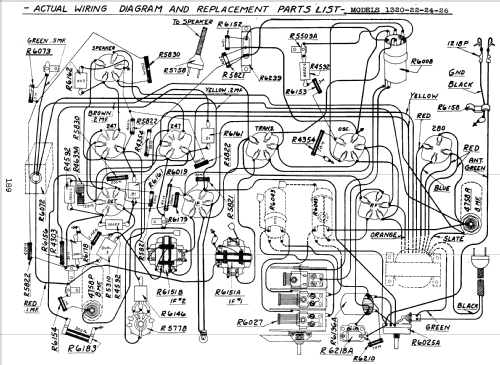

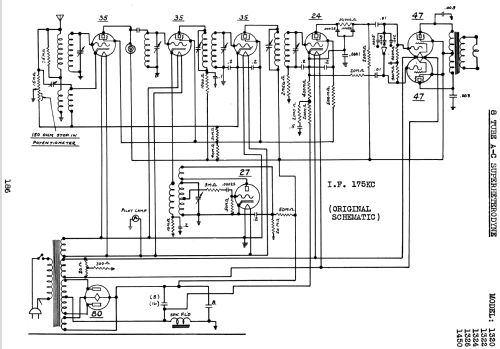

See details and summaries about Sears catalogs etc.The Sears book "Service information 1928 thru 1936" shows on page 186 the same schematic for the models 1320, 1322, 1324 and 1450. See this special text about first Silvertone superhets. Some of these Silvertone radios (1320, 1324, 1326 with X) were available with a later chassis with knobs arranged in a straight line, with two tubes 35 only.
- Mentioned in
- Silvertone Radios, Service Inf. 1928 thru 1936 (page 184.)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 2 = 1932 and before (2-11 and 2-12 or or 524-19 and 524-20)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
