Silvertone 16 Ch= 132.48700 Order=57K 16
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959/1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146023
-
- Brand: Silvertone

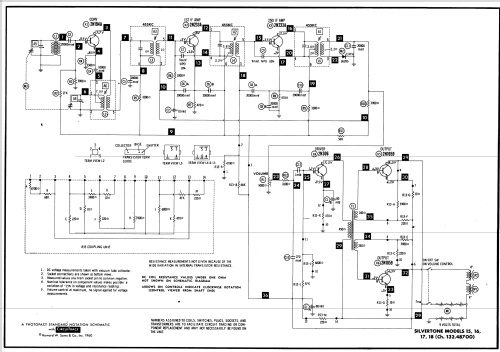

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 × 1,5 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 16 Ch= 132.48700 Order=57K 16 - Sears, Roebuck & Co.; Chicago
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 14 x 7 x 4 inch / 356 x 178 x 102 mm
- Notes
-
The Sears Silvertone 16 is a portable battery operated 6 transistor BC band receiver. The BC band tuning range is 540 to 1670kHz. Has Qty(2) PM 4" speakers and push-pull output stage. Uses Qty(6) 1.5V "D" size flashlight batteries.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Number Cabinet Color 15 Brown 16 Ivory 17 Light Green 18 Coral See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).
- Price in first year of sale
- 31.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 489 folder 18 date 6-60)
- Literature/Schematics (4)

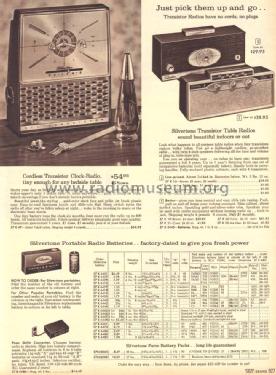

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 927.)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
