Silvertone 190, -5, 192,-5 Ch= 528.51600 to 528.51605

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1959
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 156787
    • Brand: Silvertone

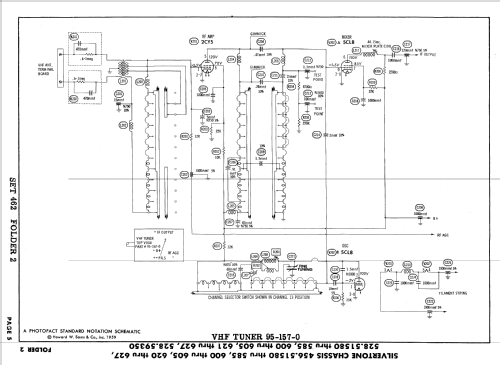

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 15
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 190, -5, 192,-5 Ch= 528.51600 to 528.51605 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • 21" b/w Television Receiver, Picture tube: 21CBP4A, Some models are equipped with continuous UHF tuner, tube quantity UHF: 16.
    Tuning Range: TV - Channels 2 thru 13 VHF, 14 thru 84 UHF.
    These units use Amplifier Chassis 528.59530 and Recird Changer Chassis 528.56802 or 528.56803.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
