• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1950–1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206834

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

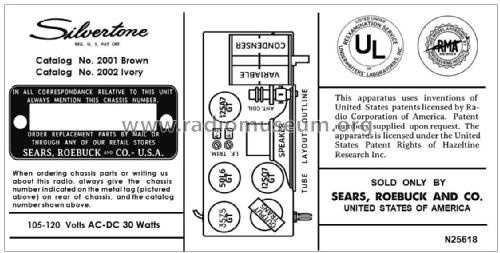

• Valves / Tubes
• 12SA7 12SQ7GT 50L6GT or 50A5 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Silvertone 2001 Ch= 132.878 Order=57G 02001 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 8.375 x 5 x 4 inch / 213 x 127 x 102 mm

• Notes

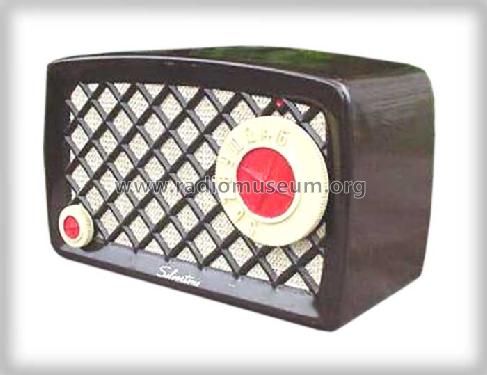

• The Sears Silvertone 2001 is a AC/DC 4 tube BC band receiver. This model was manufactured for Sears by Noblitt-Sparks Ind. Inc. (Arvin), Columbus, IN (Sears Manufacturer Source Number Code 132). Cabinet is Brown. Model Silvertone 2002 uses same chassis but has Ivory cabinet.

• Price in first year of sale
• 11.95 $

• Source of data
• Collector's Guide to Antique Radios (7th Edition)

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (21-1)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1952/53, page 856.)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
