• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1953/1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129966

• • Brand: Silvertone

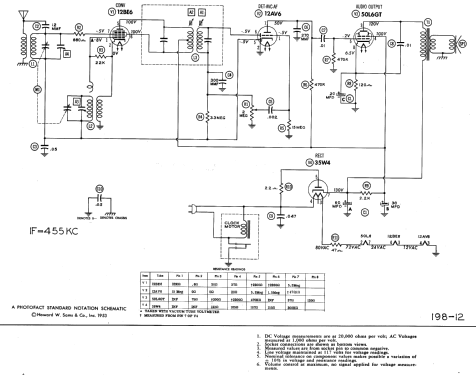

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12BE6 12AV6 50L6GT 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Silvertone 2007 Ch= 757.100 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• Silvertone model 2007 is an AC operated AM superheterodyne receiver with electric clock.
  The Silvertone model 2007 with chassis 757.100 is an AC operated AM superheterodyne receiver with electric clock inclusive alarm clock. The superhet has only 4 tuned circuits. The current must be 60 cyles for the clockradio.

• Literature/Schematics (1)

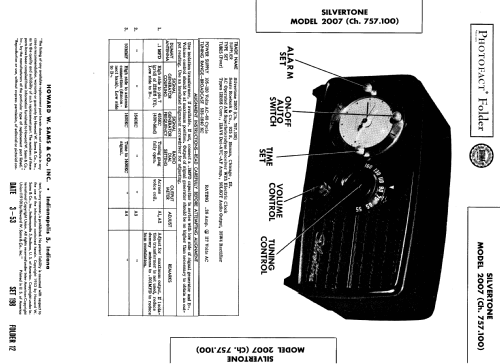

• Photofact Folder, Howard W. SAMS (Set 198, folder 12, dated 3-53)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
