Silvertone 2046 Ch= 132.42501 Order= 57H 2046C

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 259431
    • Brand: Silvertone

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 2046 Ch= 132.42501 Order= 57H 2046C - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 19.75 x 11.75 x 5.5 inch / 502 x 298 x 140 mm
  • Notes

  • The Sears Silvertone 2046 is an AC operated 9 transistor AM/FM receiver. Uses Qty(1) elliptical PM 5" x 7" speaker.  Has built-in AM and FM antennas, with provisions for connecting an external FM antenna. Also has phono input jack and 1100W AC utility outlet.

    The following models use the same schematic and chassis but have different cabinets:

    Model Cabinet
    2042 Contemporary: Beige plastic cabinet with brown grille cloth, walnut-finished wood end caps
    2046 Early American: Detailed maple veneer wood cabinet

    WARNING:  When servicing this radio, an isolation transformer should be used between the power line and the radio.

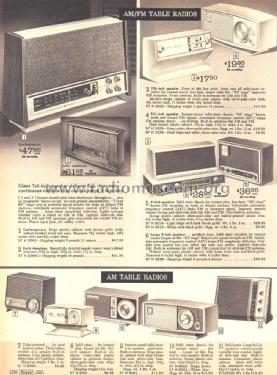

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks Ind. (Arvin), Columbus, Indiana (Sears Manufacturer Source Number Code 132).

  • Price in first year of sale
  • 61.95 $
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
