Silvertone 2178 Order= 57X 2178C
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1973/1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 259502
-
- Brand: Silvertone
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / Either AC: 60 cycles, 120V or Batteries: "C" 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 2178 Order= 57X 2178C - Sears, Roebuck & Co.; Chicago
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11.875 x 7.4375 x 3.1875 inch / 302 x 189 x 81 mm
- Notes
-

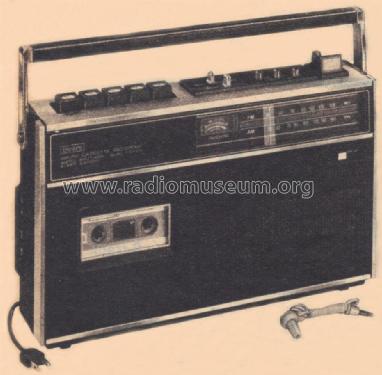

The Sears Silvertone 2178 is an AC/Battery operated combination AM/FM radio with Cassette Player/Recorder. Operates from AC line cord or Qty(6) "C" 1.5V batteries. Has black plastic cabinet with brushed aluminum trim.
- Price in first year of sale
- 64.88 $
- Literature/Schematics (2)

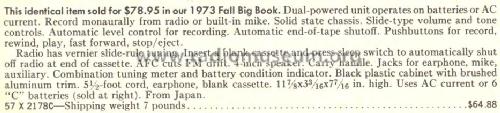

- Sears, Roebuck Catalogs (Silvertone) (Winter 1974, page 240.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
