• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1952–1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88871

• • Brand: Silvertone

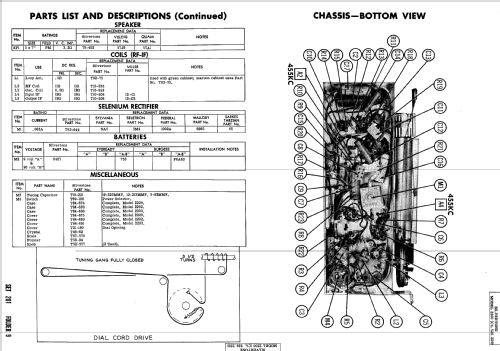

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117 AC/DC or 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 2200 Ch= 528.229 Order=57G 02200 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13.25 x 10 x 5.75 inch / 337 x 254 x 146 mm

• Notes

• The Silvertone models 2200 (Color = Maroon), 2202 ( = Green) and 2203 ( = Silver) from Sears Roebuck & Co. with the chassis 528.259 and 528.229 are three power portable superheterodyne receivers. It seems that according to Beitman Radio Diagrams 1953 the models Silvertone 2200, 2202 and 2203 use two different chassis and therefore we have listed both versions. But the schematic show no difference because it is the same sheet. SAMS Photofact date 12-53, set 224, folder 12 shows Silvertone models 3200, 3202 and 3203 with the same chassis 528.259 as the series 2000. We don't know the differences between those ranges but presume it is the case. Please have a closed look if you upload photos or schematics/data and inform via forum or contact sheet. The Silvertone model 2201 is with battery, $ 50.70.

• Price in first year of sale
• 46.95 $

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 13, 1953

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 4-53, Set 201, Folder 9)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1952/53, page 858.)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
