Silvertone 2205 Order=57G 2205

Silvertone 2205 Order=57G 2205; Sears, Roebuck & Co. (ID = 1291494) Radio Silvertone 2205 Order=57G 2205; Sears, Roebuck & Co. (ID = 1291497) Radio
Silvertone 2205 Order=57G 2205; Sears, Roebuck & Co. (ID = 1291996) Radio Silvertone 2205 Order=57G 2205; Sears, Roebuck & Co. (ID = 1673745) Radio
Silvertone 2205 Order=57G 2205; Sears, Roebuck & Co. (ID = 1673746) Radio Silvertone 2205 Order=57G 2205; Sears, Roebuck & Co. (ID = 1673751) Radio
Use red slider bar for more.

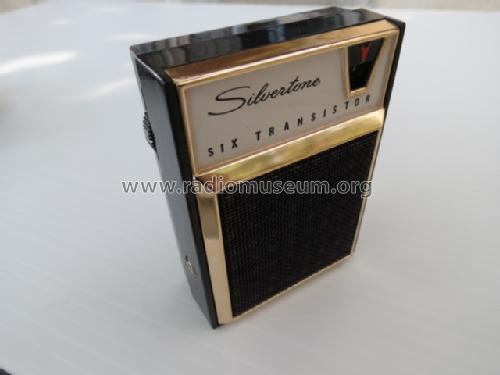

Silvertone 2205 Order=57G 2205; Sears, Roebuck & Co. (ID = 1291494) Radio
Sears, Roebuck & Co.: Silvertone 2205 Order=57G 2205 [Radio] ID = 1291494 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 2205 Order=57G 2205, Sears, Roebuck & Co.; Chicago (IL):
Silvertone 2205

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out
from Radiomuseum.org Model: Silvertone 2205 Order=57G 2205 - Sears, Roebuck & Co.; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 62 x 28 x 85 mm / 2.4 x 1.1 x 3.3 inch
Notes

Similar to the 3207. Uses an unusual 9V battery. Sold by Sears Roebuck and Co. and Simpsons - Sears Limited. Has metal tag that reads "CODE No 132.61101" This code is to be used when ordering parts.

Model Cabinet
2205 Black
2206 Gold Color
2207 Ice Blue



Price in first year of sale 18.95 $
Literature/Schematics (4) Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1234.)

Model page created by Bill Miller. See "Data change" for further contributors.
