Silvertone 2209 Order= 57G 22091
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254116
-
- Brand: Silvertone
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 2209 Order= 57G 22091 - Sears, Roebuck & Co.; Chicago
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.75 x 4.25 x 1.375 inch / 70 x 108 x 35 mm
- Notes
-
The Sears Silvertone 2209 is a battery operated portable AM radio. Has built-in AM antenna and thumb wheel tuning. This model was sold with a battery, earphone and split leather case.
Made in Hong Kong.

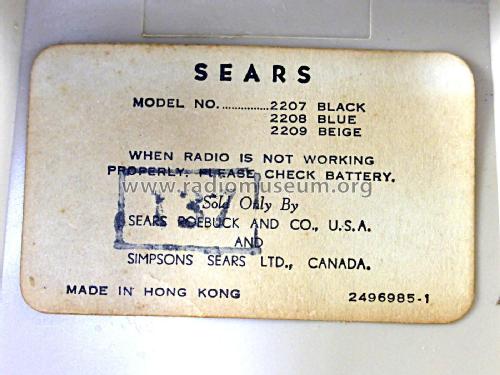

The following models use the same schematic and cabinet but have different cabinet colors:
Model Cabinet 2209 Beige 2207 Black 2208 Blue
- Price in first year of sale
- 7.50 $
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1969, page 917.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
