• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 253616

• • Brand: Silvertone

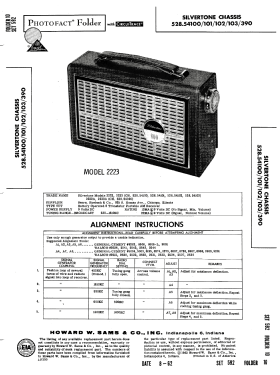

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Silvertone 2223 Order=57G 2223 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10.5 x 6.5 x 3.5 inch / 267 x 165 x 89 mm

• Notes

• Model	Cabinet
  2222	Tan
  2223	Gray



• Price in first year of sale
• 37.95 $

• Literature/Schematics (2)
• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1235.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
