2228 Ch=132.41601
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1968/1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254119
-
- Brand: Silvertone
Front view with left swivel
Front view with right swivel
Back view showing strap

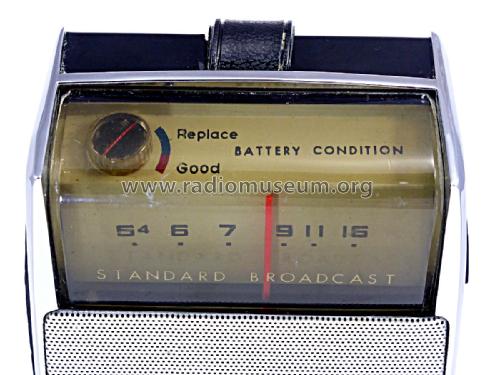

Battery indicator details

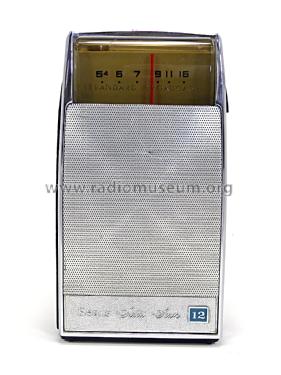

Front view - straight on
Inside view
Label inside back case
Transistors
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Batteries / addl. power jack
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2228 Ch=132.41601 - Sears, Roebuck & Co.; Chicago
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 3.75 x 6.75 x 2.25 inch / 95 x 171 x 57 mm
- Notes
-
The Sears 2228 is an AC/battery powered portable AM radio. Has tone control and battery condition indicator. Uses Qty(1) Elliptical PM 4" x 2.75" speaker. This model was sold with an AC adapter, batteries, earphone and carrying strap.
Made in Hong Kong.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Cabinet 2227 Brown 2228 Black
- Price in first year of sale
- 19.50 $
- Literature/Schematics (2)

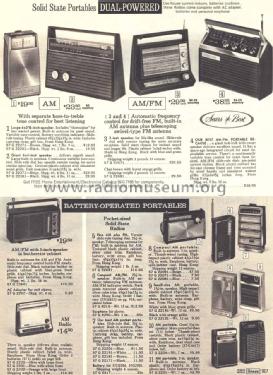

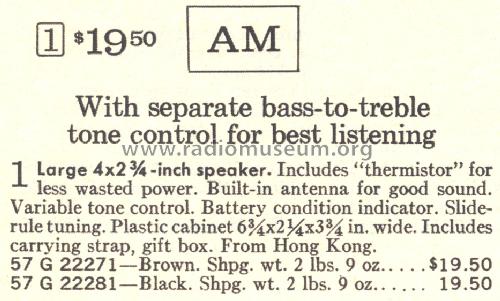

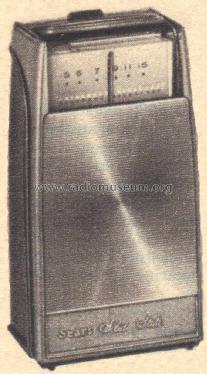

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1969, page 917.)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1968, page 1247.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
