Silvertone 237 Record Changer Ch= 488.237 Order=57E 0237
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1950/1951
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 129495
-
- Brand: Silvertone
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: Silvertone 237 Record Changer Ch= 488.237 Order=57E 0237 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13.1875 x 10 x 11.875 inch / 335 x 254 x 302 mm
- Notes
-
The Silvertone model 237 is an AC operated stand alone record changer with 3 tube amplifier. The record changer is a V-M model 950 (SAMS set 131, folder 17).
- Price in first year of sale
- 46.95 $
- Literature/Schematics (1)

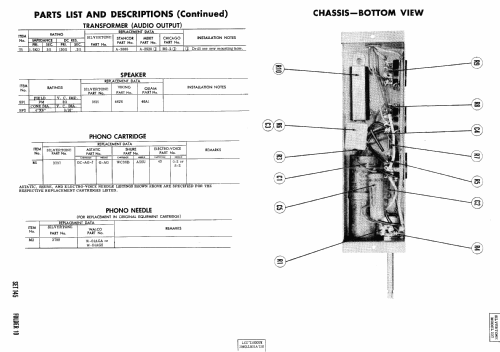

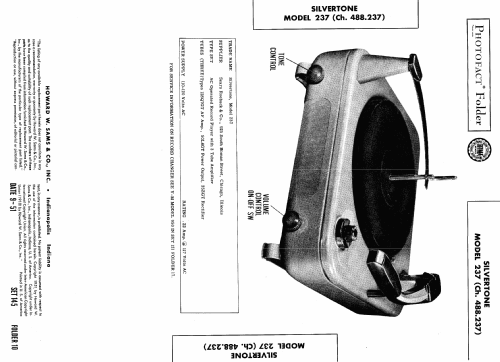

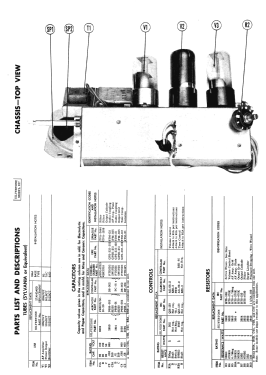

- Photofact Folder, Howard W. SAMS (Date 9-51, set 145, folder 10)
- Literature/Schematics (3)

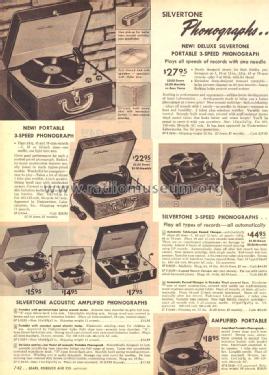

- Sears, Roebuck Catalogs (Silvertone) (Spring & Summer 1951, page 649.)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1950, page 742.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
