• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1949–1951

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 225637

• • Brand: Silvertone

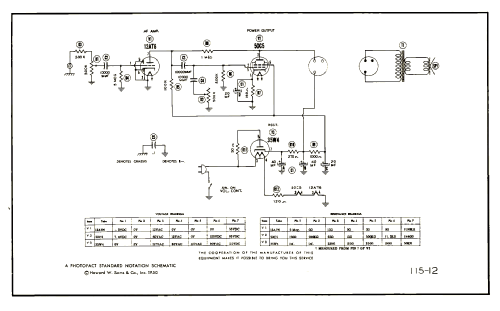

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AT6 50C5 35W4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (perh.Changer)

• Power type and voltage
• 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Silvertone 249 Ch= 548.360-1 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13.1875 x 10 x 11.875 inch / 335 x 254 x 302 mm

• Notes

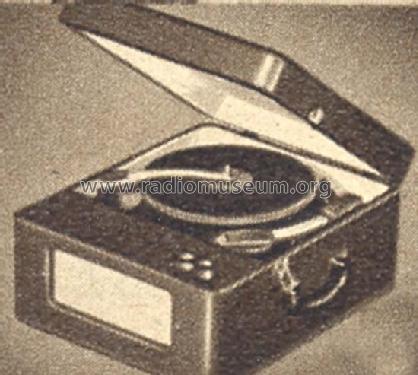

• Silvertone model 249 is an AC operated automatic record player with three tube amplifier.

• Price in first year of sale
• 54.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 115, Folder 12 dated 12-50)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (#200, Spring & Summer 1950, page 607. Spring & Summer 1951, page 649.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
