• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 143757

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 7025 7025 50C5 50C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: Silvertone 263 Ch=528.59370 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes
• AC operated stereo phono amplifier with 4 speed automatic record player. Sams photofact set 476 folder 15 date 3-60 features the Silvertone models 263, 272 and 273 as the same schematic.

• Literature/Schematics (1)

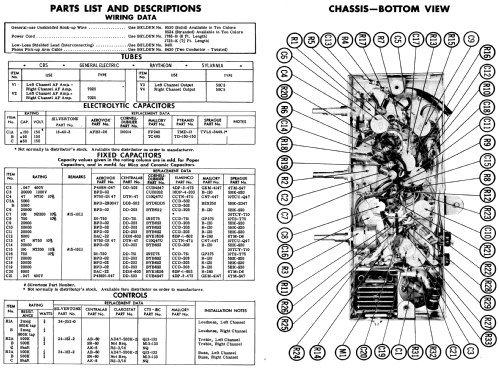

• Photofact Folder, Howard W. SAMS (Set 476 folder 15 date 3-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
