• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 255733

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 50EH5

• Main principle
• Audio-Amplification; 1 AF stage(s)

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz: 117 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 5.25 inch = 13.3 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Silvertone 3262 Order=57A 3262L - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 18 x 11 x 13 inch / 457 x 279 x 330 mm

• Notes

• The Sears Silvertone 3262 is an AC operated, 4 speed record player.  Has brown and white leatherette case.

  Selenium rectifier.

• Price in first year of sale
• 48.50 $

• Literature/Schematics (2)

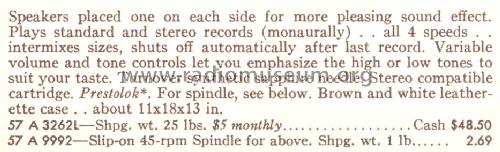

• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1269.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
