• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56209

• • Brand: Silvertone

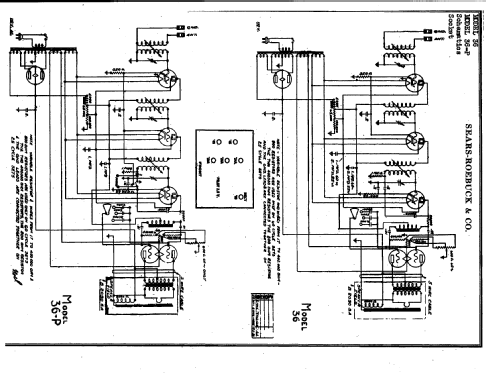

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 24A 24A 24A 45 45 80

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 36AC - Sears, Roebuck & Co.; Chicago

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Notes
• This is one of the very first cathedrals Silvertone ever made. It sold for $35.50 in 1931 dollars, and was billed as "a small set with a big punch." It has a clean-lined look about it with very interesting grill cutouts and shaded tone around the grill. Unlighted peep window dial below. Four knobs for tone, tuning, volume and on-off. Measures 14 3/4" w x 7 1/2" d x 17" high

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932
