Silvertone 4035 Ch= 528.305
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 130130
-
- Brand: Silvertone
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Silvertone 4035 Ch= 528.305 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 17.75 x 13.25 x 17.25 inch / 451 x 337 x 438 mm
- Notes
-

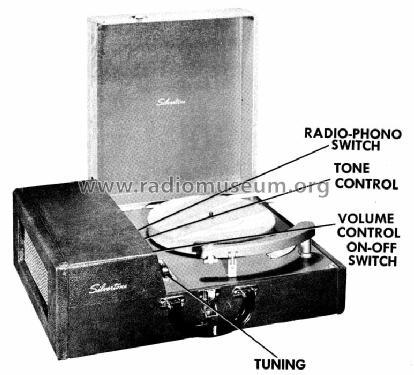

The Silvertone 4035 with chassis 528.305 from Sears, Roebuck & Co. is an AC operated Radio-Phono combination with 3 speed manual record player. 6x4-inch speaker.
- Price in first year of sale
- 44.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 2-55, set 266, folder 15)
- Literature/Schematics (3)

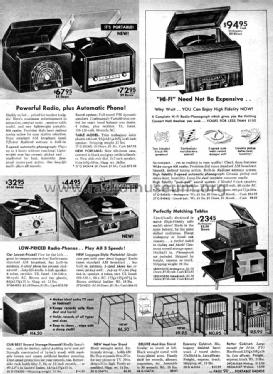

- Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1954/55, page 911.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
