Silvertone 4249 Ch= 137.91800
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1954–1956
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 130150
-
- Brand: Silvertone
SAMS

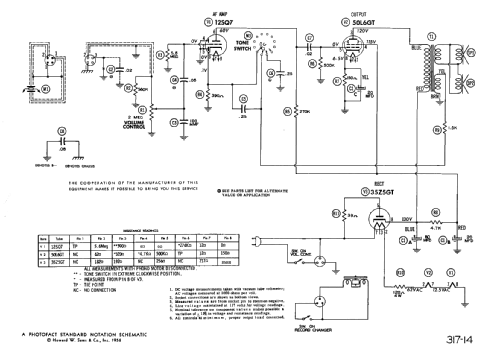

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Silvertone 4249 Ch= 137.91800 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 15.5 x 8.5 x 18.5 inch / 394 x 216 x 470 mm
- Notes
-
The Silvertone models 4249 and 42491 Ch= 137.91800 are AC operated Phono Amplifiers with 3 speed automatic record changer. The chassis of the record changer unit is a Silvertone model 488.216-9. We think the differences between the models lie in the cabinet.
- Price in first year of sale
- 66.50 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-56, set 317, folder 14)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1954/55, page 912.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
