Silvertone 4765 Order= 57V 4765 Ch= 101.488C

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 230215
    • Brand: Silvertone

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 465 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 50 or 60 cycles, 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 4765 Order= 57V 4765 Ch= 101.488C - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 19.5 x 12.5 x 10.9 inch / 495 x 318 x 277 mm
  • Notes

  • The Sears Silvertone 4765 is an AC operated, 8 tube BC, police and SW band receiver.

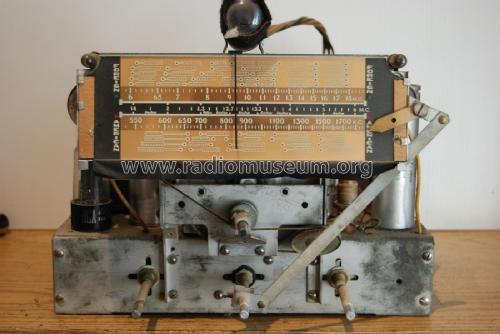

    It has 3 tuning bands: SW from 1.7 to 6.1 MC, Foreign from 6.1 to 18 MC and Broadcast from 545 to 1775 kC.

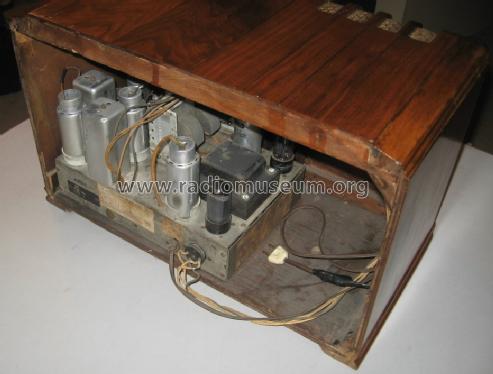

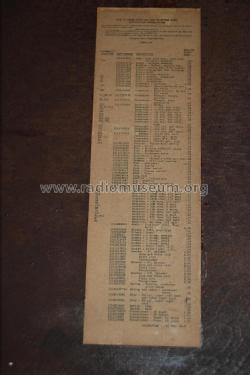

    This model page was created based on pictures of model without having access to the model.  The chassis label looks very similar to the chassis 101.482 (used in model 4769 and others).  The difference in the chassis looks mechanical, with the 101.482 chassis having the tuning knob raised higher for the "phone dial" type tuning knob, but otherwise the chassis looks similar, including the locations of the tubes and power transformer.

    The 101.488C chassis is not in Riders.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Colonial Radio Corp., Buffalo, NY (Sears Manufacturer Source Number Code 101).

  • Price in first year of sale
  • 33.45 $
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
