Silvertone 5203 Order=57A 5203
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 249887
-
- Brand: Silvertone
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 5203 Order=57A 5203 - Sears, Roebuck & Co.; Chicago
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.5 x 4 x 1.125 inch / 64 x 102 x 29 mm
- Notes
-

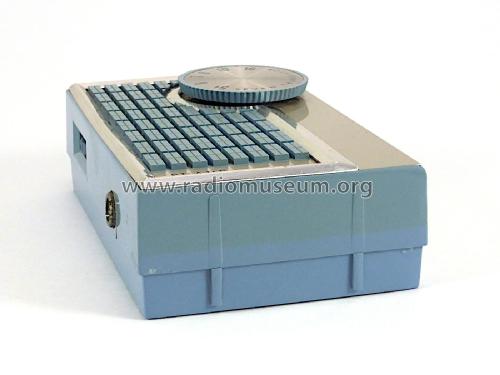

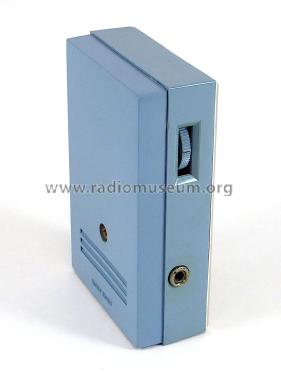

The Sears Silvertone 5203 is a battery operated BC band portable radio. Durable plastic cabinet with silver-gold-color metallic trim. Uses Qty(1) mercury battery. Original purchase included black leatherette carrying case, earphone and mercury battery.
The following models use the same chassis and schematic:
Model Cabinet 5202 Black 5203 Mist blue 5204 Tangerine 5205 Olive green Requires special 9-volt battery.
- Price in first year of sale
- 9.95 $
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-54, May 1965)
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1965, page 1309.)
- Literature/Schematics (3)
- Collector's Guide To TrR1 Bunis trans.94 (Page 249)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
