Silvertone 5223 Order=57A 5223
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 250001
-
- Brand: Silvertone
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Silvertone 5223 Order=57A 5223 - Sears, Roebuck & Co.; Chicago
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11 x 7 x 3.5 inch / 279 x 178 x 89 mm
- Notes
-
The Sears Silvertone 5223 is a battery operated 10 transistor portable AM radio. Has RF stage and tone control. Uses elliptical 4" x 6" PM speaker. Has saddle stitched cowhide case and silver colored metal grille and trim.
The following models use the same chassis and schematic:
Model Cabinet 5223 Tan 5224 Olive Green 5225 Black
- Price in first year of sale
- 32.95 $
- Literature/Schematics (2)

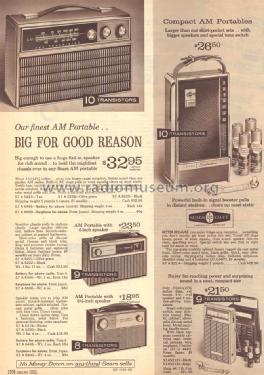

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1965, page 1308.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
