Silvertone 54 Order= 57V 4148 or 4149

Silvertone 54 Order= 57V 4148 or 4149; Sears, Roebuck & Co. (ID = 650340) Radio
Silvertone 54 Order= 57V 4148 or 4149; Sears, Roebuck & Co. (ID = 1253558) Radio Silvertone 54 Order= 57V 4148 or 4149; Sears, Roebuck & Co. (ID = 195317) Radio
Silvertone 54 Order= 57V 4148 or 4149; Sears, Roebuck & Co. (ID = 1253559) Radio
Use red slider bar for more.
Silvertone 54 Order= 57V 4148 or 4149; Sears, Roebuck & Co. (ID = 1253558) Radio
Sears, Roebuck & Co.: Silvertone 54 Order= 57V 4148 or 4149 [Radio] ID = 1253558 790x1143
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 54 Order= 57V 4148 or 4149, Sears, Roebuck & Co.; Chicago (IL):
Scanned from the Sears catalog # 160 page 515.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1929/1930 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: UY227 UY227 UY227 UY227 UY227 UY227 UX245 UX245 UX280
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 50 to 60 cycles, two taps: 105 ; 120 cover 95 to 130 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Silvertone 54 Order= 57V 4148 or 4149 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes Sears Silvertone 54 is a 9-tube "All Electric Receiver", designed by Alexander Senauke. The High-Boy console has "French type doors of matched oriental walnut veneer. They may be opened out and folded back against the panels, displaying an instrument panel of neatly matched rich burl walnut. Side panels of Carpathian elm. Very rich gold color grille cloth. Mounted is a "super-dynamic speaker". Ornamental escutcheon and wood knobs.
Order number 57V 4148 - 1/4 is with all tubes and aerial equipment, $ 124. 57V 4149 1/4 is with easy payment: $ 10 "down" cash and $ 13 per month until paid $ 136.50. The same model could be ordered with a transformer for 25 to 30 cycles for the same price - which can be used in fact also for 60 cycles. See details and summaries about Sears catalogs etc. The catalog #160 gives no measures for this model.

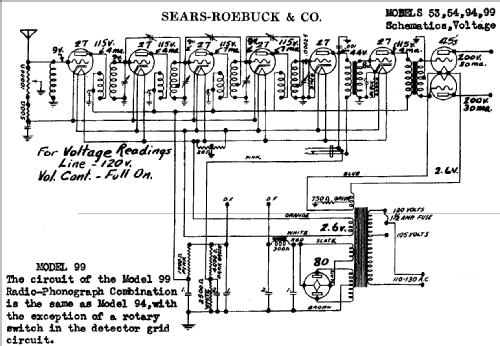

Rider's Sears 6-1 schows for the same schematic the following models: 53, 54, 94 and 99 plus a note that model 99, the Radio-Phonograph Combination is the same as model 94, with the exception of a rotary switch in the detector grid circuit. It shows one untuned RF circuit in tront, 4 tuned, two AF transformers and a Push-Pull output. The mains transformer has two taps. With special order there is a 25 to 30 cycles transformer (which works naturally also for 50 or 60 cycles) without extra charge.
Price in first year of sale 124.00 $ !
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in The Sears Silvertone Catalogs 1930-1942 (page 14)
Literature/Schematics (1) Sears, Roebuck Catalogs (Silvertone) (#160, Spring & Summer 1930, page 515)
