Silvertone 56 Order= 57V 4132 or 4133

Silvertone 56 Order= 57V 4132 or 4133; Sears, Roebuck & Co. (ID = 417391) Radio
Silvertone 56 Order= 57V 4132 or 4133; Sears, Roebuck & Co. (ID = 1253555) Radio Silvertone 56 Order= 57V 4132 or 4133; Sears, Roebuck & Co. (ID = 1252124) Radio
Silvertone 56 Order= 57V 4132 or 4133; Sears, Roebuck & Co. (ID = 1252125) Radio Silvertone 56 Order= 57V 4132 or 4133; Sears, Roebuck & Co. (ID = 195313) Radio
Silvertone 56 Order= 57V 4132 or 4133; Sears, Roebuck & Co. (ID = 1253556) Radio
Use red slider bar for more.
Silvertone 56 Order= 57V 4132 or 4133; Sears, Roebuck & Co. (ID = 1253555) Radio
Sears, Roebuck & Co.: Silvertone 56 Order= 57V 4132 or 4133 [Radio] ID = 1253555 830x1238
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 56 Order= 57V 4132 or 4133, Sears, Roebuck & Co.; Chicago (IL):
Scanned from the Sears catalog # 160 page 514.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1929/1930 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UY224 UY224 UY227 UY227 UX245 UX245 UX280
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 50 to 60 cycles, 110 for 105 to 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Silvertone 56 Order= 57V 4132 or 4133 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 27.3 x 50 x 16.8 inch / 693 x 1270 x 427 mm
Notes According to Sears ads September 1929 there are two different chassis for the Silvertone High Boy with two doors, stretcher and (then) a sales price of $ 110. One is a 7 tube screen grid chassis, presumably this model Silvertone 56 and the other a 8 tube Neutrodyne, presumably the model Silvertone 51. Alexander Senauke designed the technology and Lorado Taft proclaimed "the New Silvertone a masterpiece in cabinet design!". Push-pull output. Mark V. Stein shows a model without stretcher for Silvertone 4130 #51 and 4132 #56 with a price of $ 125 on page 179, "Pre War Consoles". Price and picture are wrong.
Order number 57V 4132 - 1/4 is with tubes, aerial and ground equipment, $ 100. 57V 4133 1/4 is with easy payment: $ 10 "down" cash and $ 10 per month until paid $ 110. The same model could be ordered with a transformer for 25 to 30 cycles for the same price - which can be used in fact also for 60 cycles. See details and summaries about Sears catalogs etc.
Price in first year of sale 110.00 $ !
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

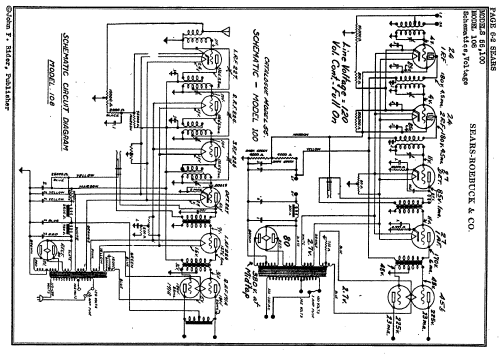

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in The Sears Silvertone Catalogs 1930-1942 (Page 13 with a (reduced) price of $ 100.)
Literature/Schematics (1) Sears, Roebuck Catalogs (Silvertone) (#160, Spring & Summer 1930, page 514. Then with (reduced) price $ 100.)
