Silvertone 6128 Ch= 528.38403

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 307010
    • Brand: Silvertone

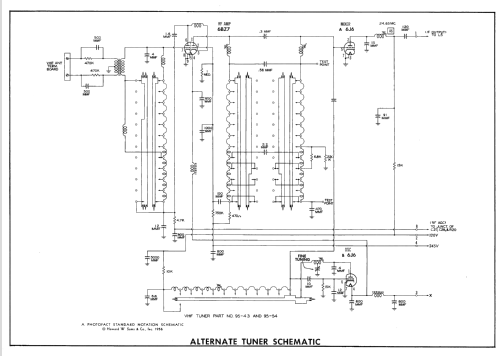

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 6128 Ch= 528.38403 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Silvertone model 6128 is a 24" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 528.38403, VHF tuner 95-43 and picture tube 24YP4.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
