Silvertone Order= 57L 6244 Ch= 101.562
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 91510
-
- Brand: Silvertone

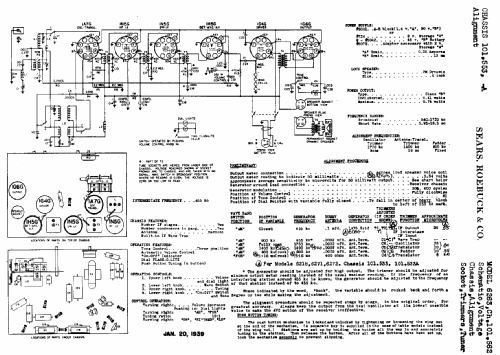

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 90 & 1.4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.75 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57L 6244 Ch= 101.562 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 21.4 x 12.3 x 13.2 inch / 544 x 312 x 335 mm
- Notes
- Same as model 6263 but supplied with dry batteries, for data and schematic see model 6263.
- Price in first year of sale
- 30.74 $
- Literature/Schematics (1)
- Riders 11-45
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 166)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 178, Spring & Summer 1939, page 673.)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
