• Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 227614
    • Brand: Silvertone

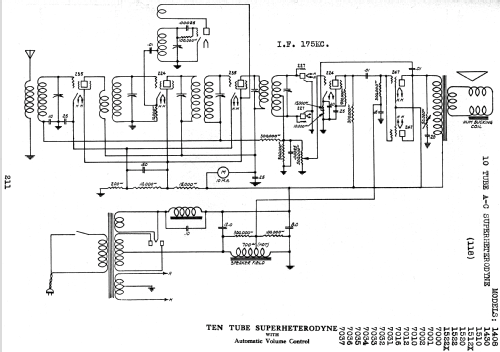

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / Either Transformer: 25 cycle, 110V or 60 cycle, 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: Silvertone 7035 - Sears, Roebuck & Co.; Chicago
  • Notes
  • The Sears Silvertone 7035 is an AC operated 10 tube BC band receiver.

    The chassis and schematic used for this model is also used in models 1408, 1430, 1510, 1512X, 1520, 1522, 1522X, 7000, 7001, 7002, 7010, 7012, 7016, 7031, 7032, 7033, 7034, 7036 and 7037.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Sentinel Radio Corp., Chicago, Ill (Sears Manufacturer Source Number Code 106).



  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
