Silvertone 7165
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161766
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either 105-120VDC or 25-60 cycles, 105-120 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- from Radiomuseum.org
- Model: Silvertone 7165 - Sears, Roebuck & Co.; Chicago
- Notes
-
The Silvertone 7165 is an AC/DC operated 4 tube BC band receiver. The line cord is a "curtain burner" with a 285 ohm resistance in series with the tube filaments.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Corona Radio and Television Corp., Chicago, Ill (Sears Manufacturer Source Number Code 104).
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (1)
- Riders 7-65
- Literature/Schematics (2)

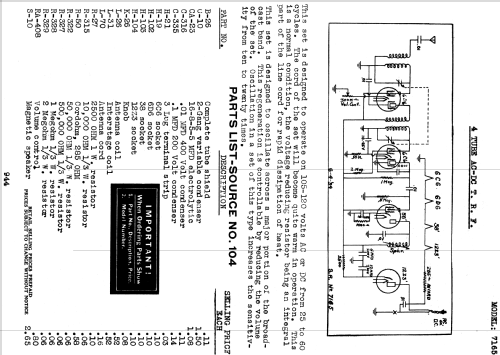

- Silvertone Radios, Service Inf. 1928 thru 1936 (Page 944)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
