Silvertone 7498 Kit Order=57H 7498
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1962/1963
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 251702
-
- Brand: Silvertone

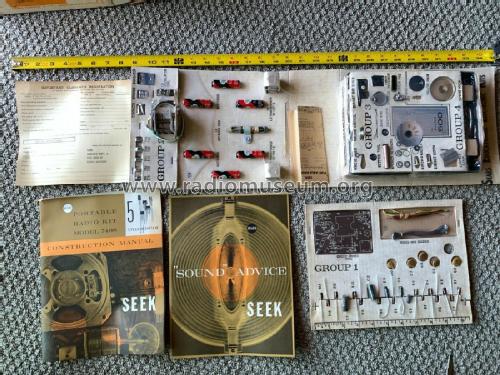

Picture courtesy of guest Kelly Simoes
Picture courtesy of guest Kelly Simoes
Picture courtesy of guest Kelly Simoes
ebay.com_303590121596 seller enatec
ebay.com_303590121596 seller enatec
ebay.com_303590121596 seller enatec
ebay.com_303590121596 seller enatec
ebay.com_303590121596 seller enatec
- Number of Transistors
- 5
- Semiconductors
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / AA: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 7498 Kit Order=57H 7498 - Sears, Roebuck & Co.; Chicago
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 7 x 4 x 2 inch / 178 x 102 x 51 mm
- Notes
-
The Sears Silvertone 7498 is a kit for a battery operated 5 transistor AM radio. Cabinet is charcoal gray with silver-color trim.
- Price in first year of sale
- 19.50 $
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1962, page 1248.)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1277.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
